Measurement Guide

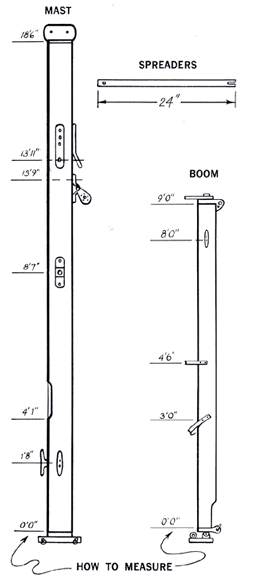

Mast Measurement Guide

The length of the mast is measured from the base of the extrusion to the top most end of the extrusion. Mast Steps and Mastheads are not included in this measurement.

All fittings are measured from the base of the extrusion upward to the center of the fitting. The Sail Feed is measured from the base of the extrusion to the lowest point on the Sail Feed.



Boom Measurement Guide

The length of the boom is measured from the inboard end of the extrusion to the most outboard end of the extrusion. Goosenecks and outhaul castings are not included in this measurement.

All fittings are measured from the most inboard end of the extrusion to the center of the fitting. Boom Sail Feeds are milled starting at the most inboard end of the boom unless specified otherwise.



Spreader Measurement Guide

The length of spreaders are measured from the most inboard end of the spreader to the most outboard end of the spreader not including brackets or spreader tips.



Standing Rigging Measurement Guide

All standing rigging is measured from center of attachment pin to center of attachment pin.

It is very important to take this measurement with all turnbuckles adjusted halfway open.
